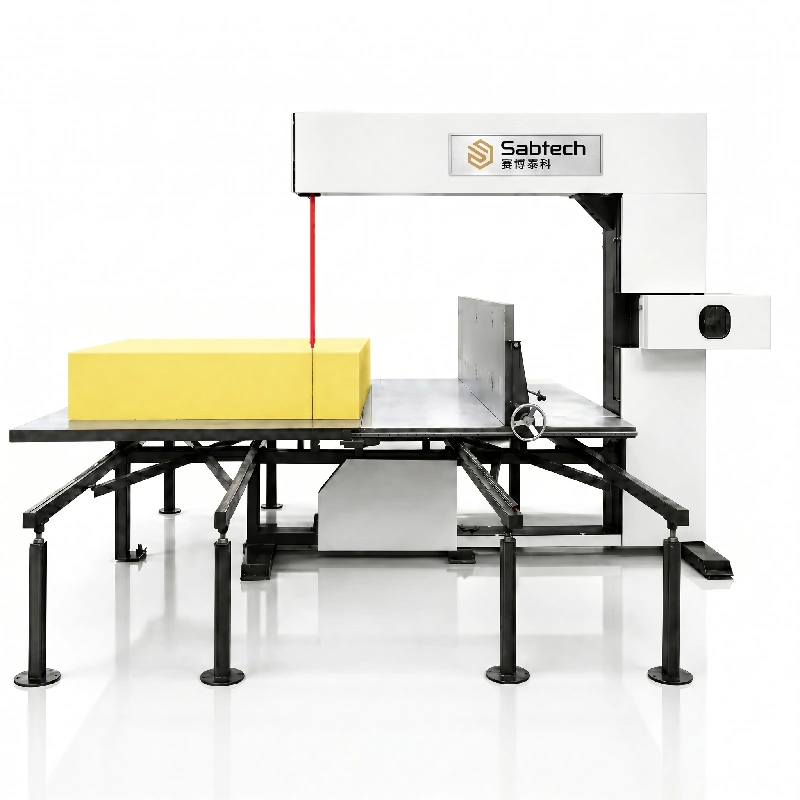

Vertical foam cutting machine(SAB-V03)
The SAB-V03 vertical foam cutting machine is used for vertical cutting, trimming, and sizing of sponge, flexible PU foam, furniture foam, mattress foam, packaging foam, shoe materials, and other flexible sheet materials.

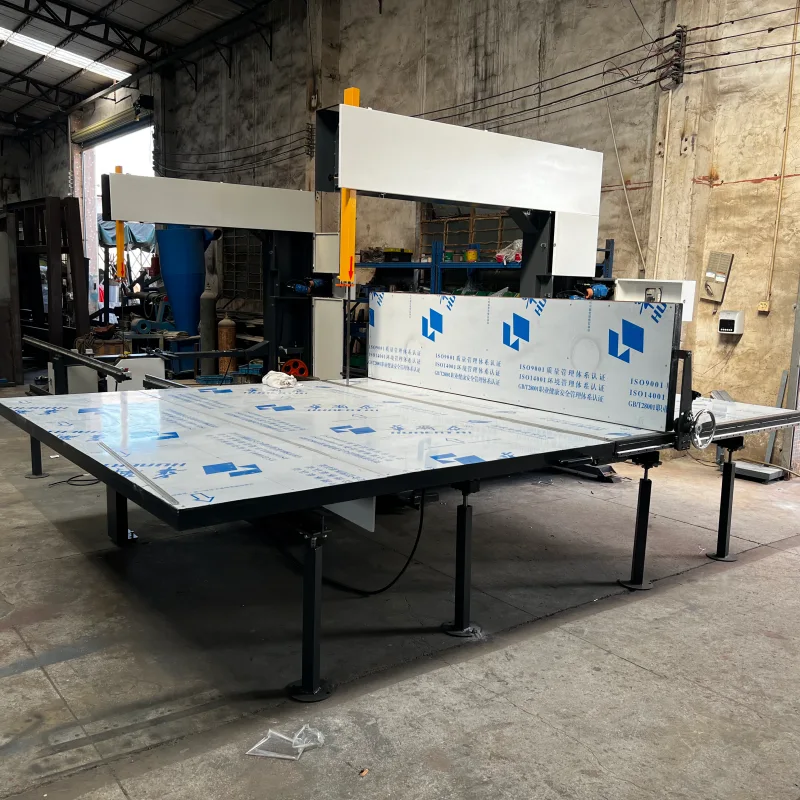

This big model is equipped with a larger worktable, with an inner table size of W1720 × L2440 mm and an outer table size of W2000 × L2440 mm. It is suitable for factories that need to process wider foam blocks, larger sponge sheets, or materials that require more working space during cutting.
Common applications include:
- Foam block trimming
- Sponge sheet cutting
- Furniture foam sizing
- Mattress foam sheet cutting
- Packaging foam cutting
- Shoe material and flexible sheet cutting
The vertical foam cutting machine is suitable for daily cutting operations before further processing, packaging, bonding, profiling, or product assembly.
Product Features
1. Large worktable for wider foam materials
With an inner table size of W1720 × L2440 mm, an outer table size of W2000 × L2440 mm, and a cutting height of 1200 mm, this big model is suitable for wider foam blocks, larger sponge sheets, and flexible materials that need more working space during cutting.

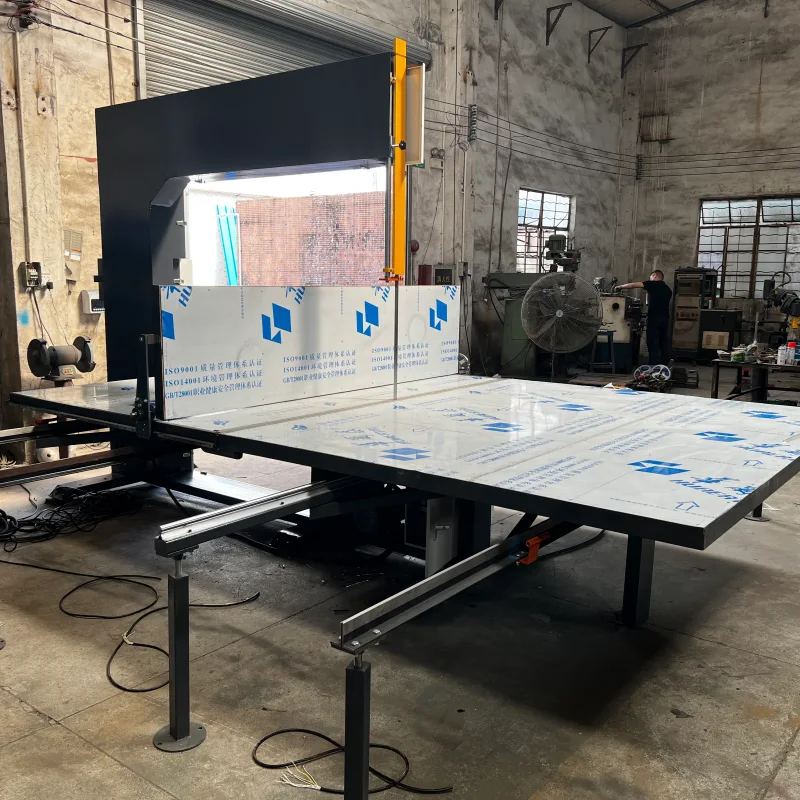

2. 600 mm baffle for material positioning
The baffle helps support and position the material during vertical cutting, making it easier to handle larger foam blocks or sheet materials on the worktable.

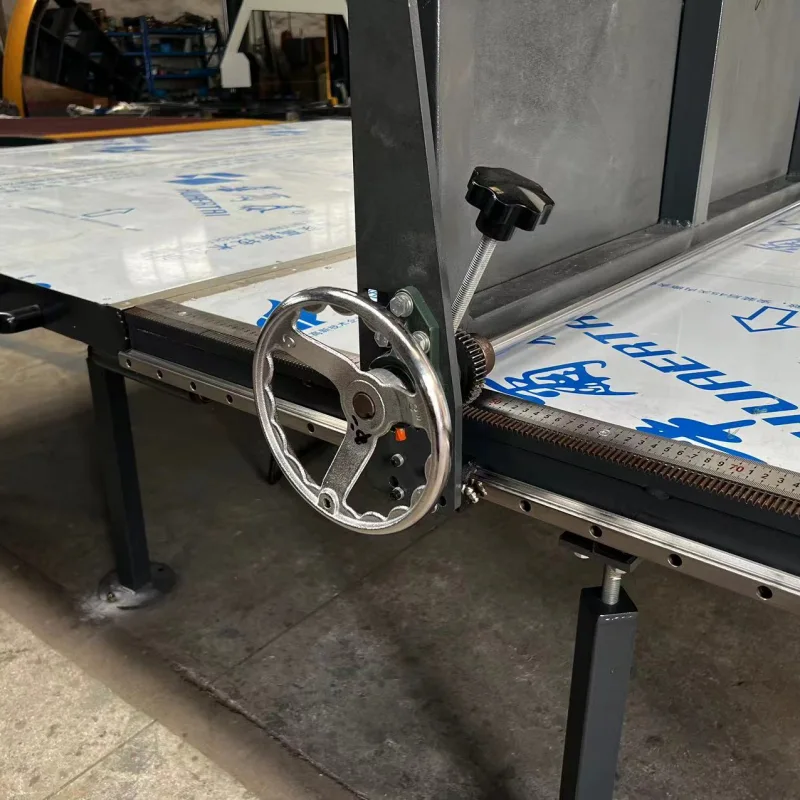

3. Linear guide rail for smoother baffle movement
The baffle guide rail uses a 20 × 20 square linear guide rail, helping the baffle move more smoothly and maintain better positioning stability during cutting.
4. T89 rail for stable worktable movement
The worktable movement uses T89 elevator special rails, supporting stable table movement during daily cutting operation.

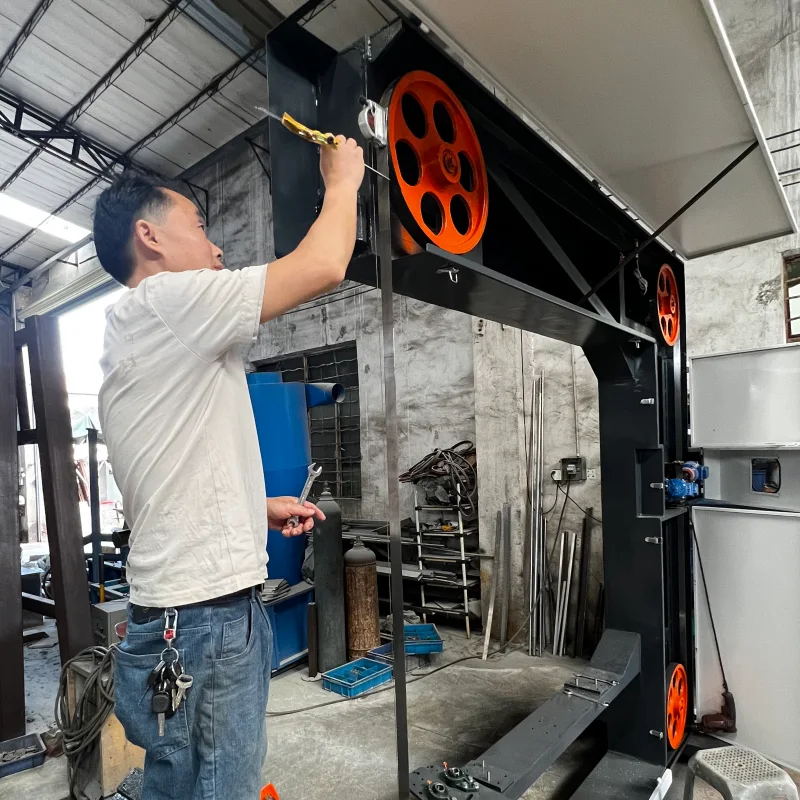

5. Separate blade and sharpening motors
The machine uses a 1.5 kW blade motor and a 120 W sharpening motor, allowing cutting and sharpening functions to be driven separately.
6. Blade break protection switch
The blade is equipped with a blade break protection switch, helping improve operation safety during cutting.
Related Parameters
| Model | SAB-V03 |
| Inner Worktable Size | W1720 × L2440 mm |
| Outer Worktable Size | W2000 × L2440 mm |
| Cutting Height | 1200 mm |
| Baffle Height | 600 mm |
| Worktable Panel | Covered with 9 mm plywood and 4 mm aluminum-plastic board |
| Baffle Guide Rail | 20 × 20 square linear guide rail |
| Worktable Moving Rail | T89 elevator special rail |
| Blade Motor | 1.5 kW |
| Sharpening Motor | 120 W |
| Blade Protection | Blade break protection switch |
| Spare Parts | 3 blades, 10 grinding wheels, 1 set of maintenance tools |

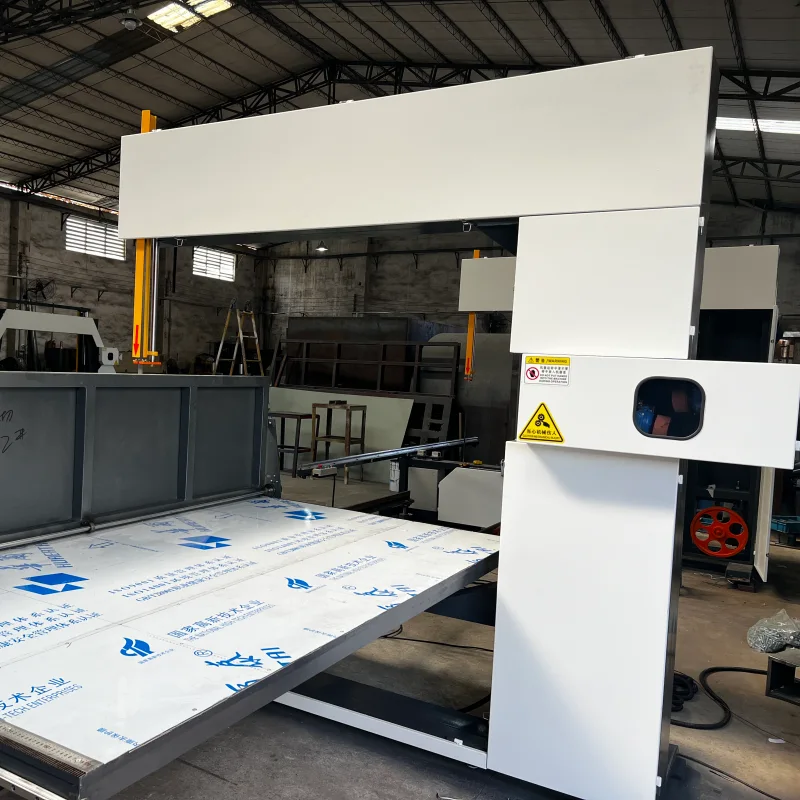

Product Detail
top-notch service
Our customer service team is a dedicated, hard-working group specially selected for their enthusiasm and commitment to providing excellent customer service. They offer advice, answer any queries, and offer continuous support even after a purchase is completed.
Need to Confirm the Right Vertical Foam Cutting Machine?
Choosing the right vertical foam cutting machine depends on material size, cutting height, workshop space, and the main cutting purpose.
Please send us your basic cutting information:
- Material width, length, and height
- Material type and hardness
- Required cutting size
- Daily cutting quantity
- Available workshop space
- Main cutting purpose, such as trimming, sizing, or sheet cutting
- Wide Application Scenarios:
- Mattress Manufacturing: Cut high-density mattress foam, memory foam block sizing
- Furniture Upholstery: Sofa sponge, cushion foam vertical trimming
- Packaging Industry: EVA foam, PU protective packaging foam slitting
- Shoe Material Factory: Soft shoe foam, insole sponge cutting
- Rebonded Foam Plant: Crushed foam block vertical shaping
- Logistics Packaging: Large buffer foam sheet cutting
Based on this information, Sabtech Machine can help evaluate whether the SAB-V03 matches your material size, cutting height, and workshop layout, and whether this vertical foam cutting machine price fits your production process.
Production Process
We believe that it is foolish to sell any fixed type of machinery. Machinery should be upgraded according to different production scenarios to maximize efficiency.
FAQ
1. What foam materials can SAB-V03 vertical cutting machine process?
The SAB-V03 vertical foam cutter supports all kinds of flexible soft foam materials, including:
Raw flexible PU foam blocks & sheets
Mattress foam, memory foam, high-resilience furniture sponge
Rebonded foam (recycled foam blocks)
Packaging protective foam & EVA soft foam
Shoe insole foam, soft shoe upper materials
Other flexible porous sheet materials for upholstery and cushion production
It is widely used for trimming, sizing and vertical slitting before bonding, profiling or finished assembly.
2. What’s the maximum cutting size of this vertical foam cutting machine for sale?
Standard SAB-V03 dimension parameters:
Inner worktable: W1720 × L2440 mm
Outer overall worktable: W2000 × L2440 mm
Max cutting height: 1200 mm
Positioning baffle height: 600 mm
This model is designed for large full-size foam blocks and wide sponge sheets that cannot fit small vertical cutters in one single cutting pass.
3. Can I customize the worktable size or cutting height?
Yes, full customization is available according to your factory’s foam raw material size, daily output and workshop space:
Customizable items: Worktable width/length, maximum cutting height, baffle height
Optional upgrades: PLC automatic positioning system, variable frequency blade motor, extended workbench
We offer free layout planning after you provide your foam block maximum dimensions and workshop floor plan.
OEM service is also supported, including customized machine color and brand laser logo engraving.
