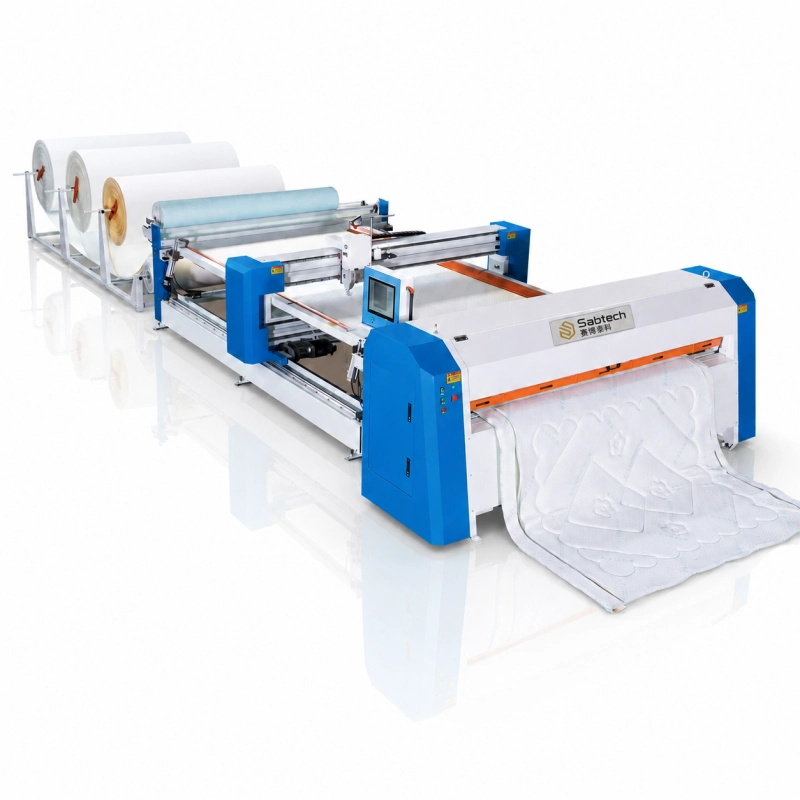

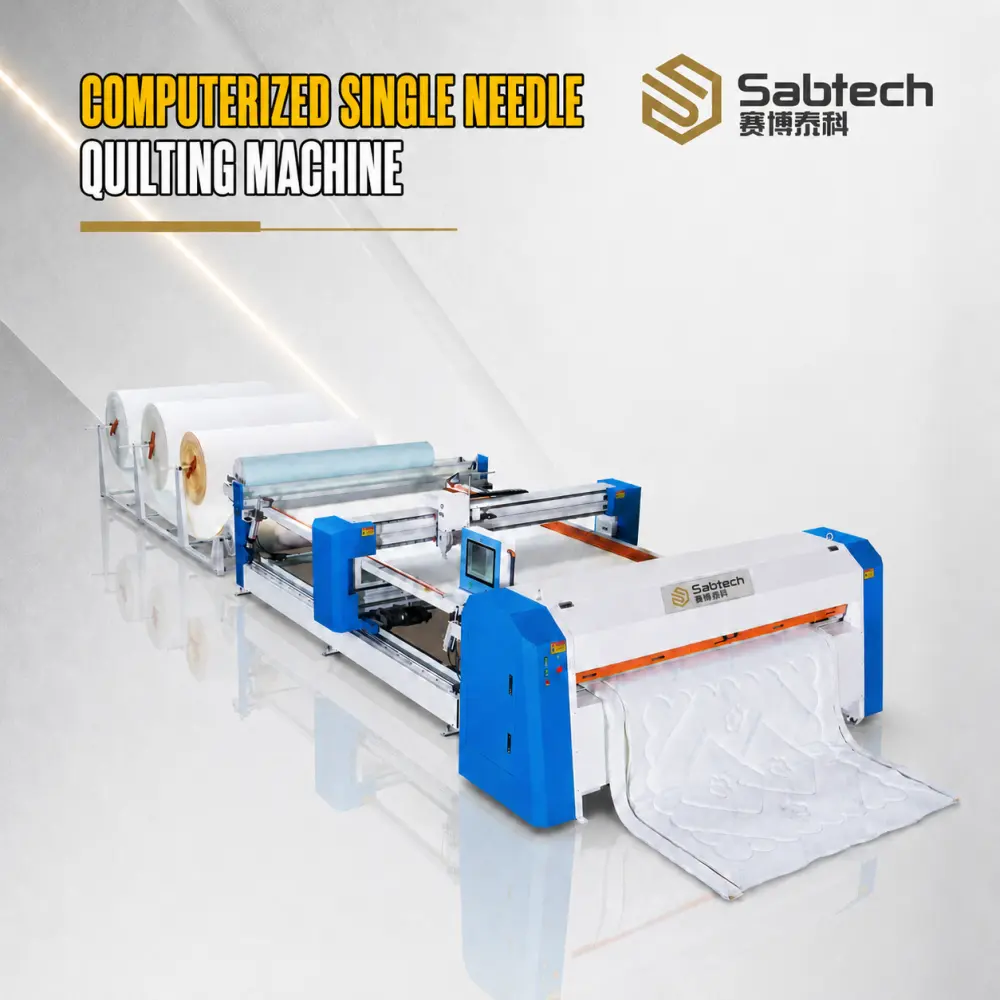

Full-automatic computerized single needle quilting machine(SAB-5D)
The SAB-5D is a computerized single needle quilting machine designed for quilts, bedspreads, cushion covers, and customized quilted fabric products.
Unlike multi needle quilting machines used for repeated large-area patterns, this single needle quilting machine is more suitable for flexible pattern production, 360° jump quilting, complex designs, and small-batch customized quilting work.
With a 2400 mm quilting width, adjustable stitch length, imported large rotary hook, and industrial computer control system, the SAB-5D helps factories produce detailed quilting patterns with better speed, accuracy, and operational stability.
Key Features and Practical Quilting Value

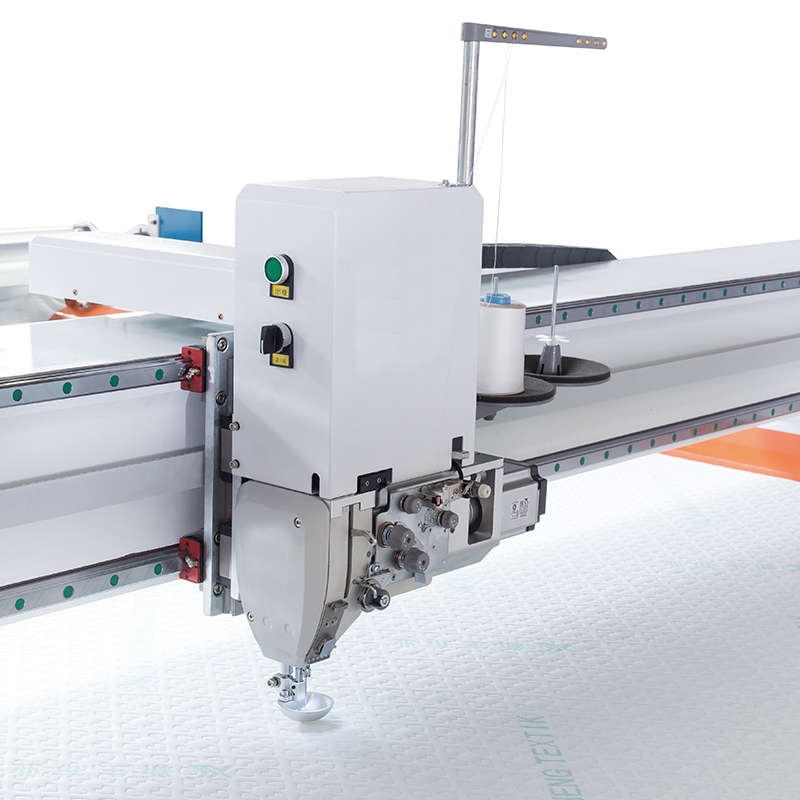

1. DÜRKOPP sewing head for higher operating speed
The DÜRKOPP sewing head supports stable high-speed quilting, with main shaft speed up to 3000 rpm.

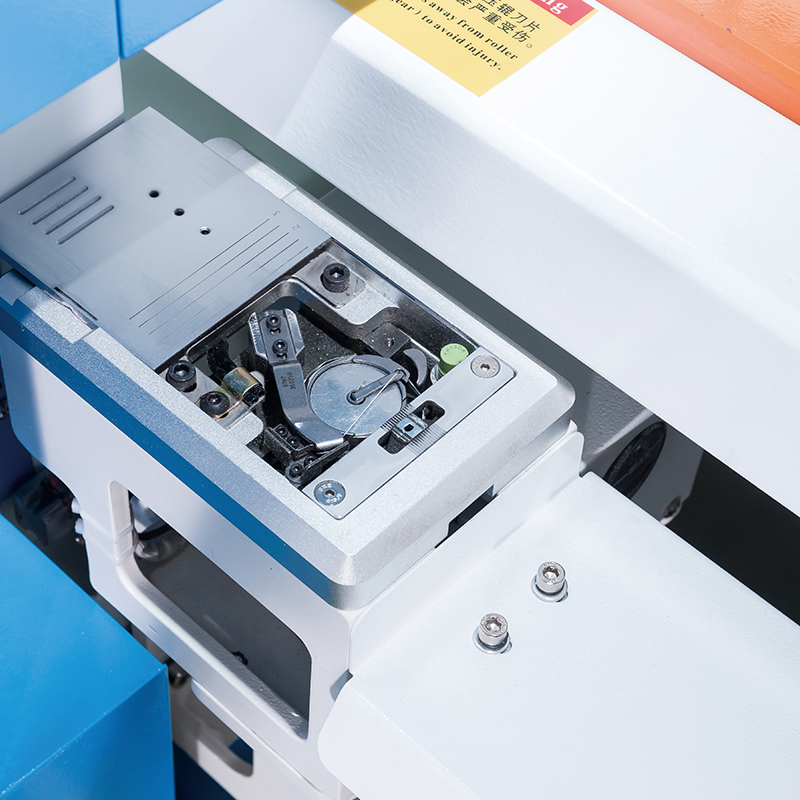

2. Imported large rotary hook
The imported large rotary hook supports jump quilting and helps the machine handle complex quilting patterns more smoothly.
3. Automatic thread breakage detection
The machine detects thread breakage automatically, helping reduce defective products during continuous quilting work.

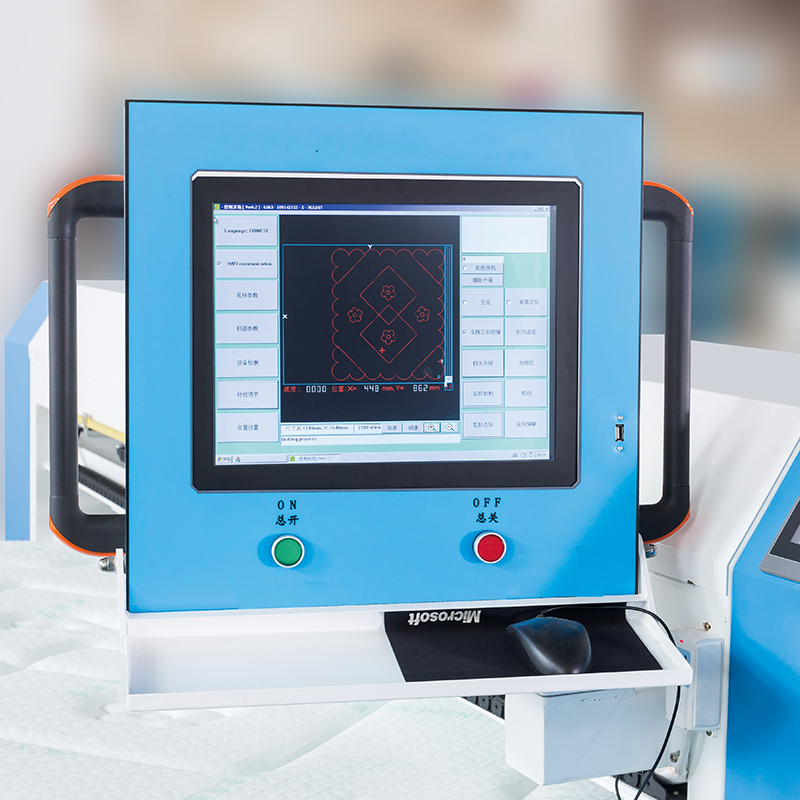

4. Touch screen pattern compensation
Pattern compensation can be adjusted through the touch screen, making it easier to correct quilting details during production.
5. Customized industrial computer control system
The industrial computer system supports accurate quilting of various complex patterns and improves operation control.
6. Adjustable presser foot
The presser foot can be adjusted according to material thickness, helping the machine handle different quilted fabric structures.
7. 360° jump quilting capability
The machine supports 360° jump quilting, making it suitable for customized patterns, decorative quilting, and non-repetitive designs.
8. Large pattern memory
The system can store more than 100,000 patterns, making it suitable for factories that frequently switch between different quilting designs.
Related Parameters
| Item | SAB-5D |
|---|---|
| Power | 7.5 kW |
| Main Shaft Speed | 3000 rpm |
| Machine Dimension | 11000 × 3800 × 1700 mm |
| Quilting Width | 2400 mm |
| Quilting Thickness | ≤ 80 mm |
| Stitch Length | 3–9 mm |
| Voltage | 380V / 220V, 60Hz / 50Hz |
| Gross Weight | 3000 kg |
Reference Quilting Results
top-notch service
Our customer service team is a dedicated, hard-working group specially selected for their enthusiasm and commitment to providing excellent customer service. They offer advice, answer any queries, and offer continuous support even after a purchase is completed.
Need Help Choosing the Right Single Needle Quilting Machine?
Please send us:
- Your main products, such as quilts, bedspreads, cushion covers, or customized quilted fabrics
- Required quilting width and finished product size
- Material thickness and filling structure
- Expected pattern type, such as 360° jump quilting or complex decorative patterns
- Whether you need frequent pattern changes or customized designs
- Workshop space, voltage, and layout conditions
Based on this information, Sabtech can help check whether the SAB-5D computerized single needle quilting machine fits your quilting work, or whether a multi needle quilting machine is more suitable for your production needs.
