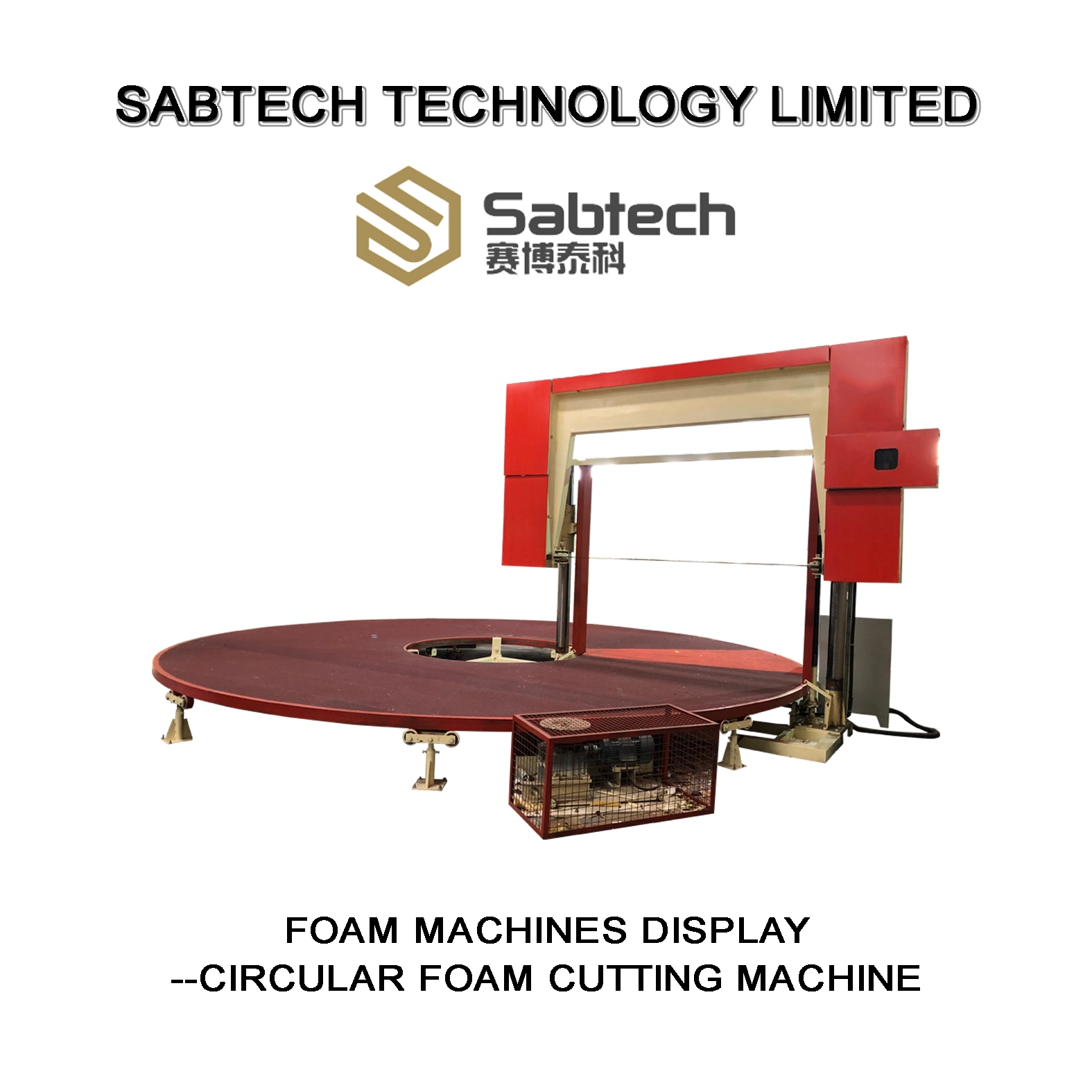

Circular foam cutting machine(SAB-CFC)

The Circular foam cutting machine/carousel foam cutting machine is primarily designed to place multiple foam blocks on the work surface and carry out simultaneous cutting. It employs automatic digital control to achieve the desired foam thickness by configuring the control box settings.



The table can be rotated in both directions, with adjustable rotation speeds. This machine allows for continuous cutting, thereby increasing production efficiency. By implementing state-of-the-art imported frequency conversion speed control technology, it ensures precise cutting and high reliability. (An optional suction device can be added to the work surface as well.)

    oops...!

    no product data.

    Go to homepage

    Product Features

    1. Extensively utilized for bulk foam cutting, offering user-friendly operation.

    2. Features an integrated vacuum system that effectively secures the foam on the platform, ensuring cutting precision.

    3. Optional addition of two blade holders enhances accuracy when cutting soft foam.

    4. Customized requests are warmly welcomed.

    5. OEM designs are also appreciated.

    未标题-4

    Related Parameters

    Model NO. SAB-CFC-60 SAB-CFC-73 SAB-CFC-100
    Cutting Foam Size(W*L*H) 1500*2000*1200MM * 4Pcs 1500*2000*1200MM*5Pcs 1500*2000*1200MM*9Pcs
    Max Cutting Foam Size (W*l*H) 1500*2000*1200MM *4Pcs 2150*3000*1200MM*3Pcs 2150*4500*1200MM*3Pcs
    Worktable Turning Speed 0-3.5R per min 0-3R per min 0-2R per min
    Blade Length L8940mm L10000mm L10240mm
    Worktable Diameter (Ø) 6m 7.3m 10.5m
    Cutting Thickness 2-150mm 2-150mm 2-150mm
    Total Power 8.92KW 9.52KW 11.92KW
    Machine Weight 3300Kgs 3500Kgs 3800Kgs
    Overall Size(L*W*H) 6900*6000*2400mm 7900*7000*2400mm 11500*10500*2400mm

    Product Detail

    The disc table is composed of motor, worm gear reducer WPO-100 (m=5 I=20), friction wheel, disc platform, roller, positioning ring, square base and so on.

    The base is composed of a base, a column, a sliding sleeve, a screw, a nut, a brake motor, a worm gear reducer RV75 (m=3 I=20), a transmission shaft, and a bevel gear.

    The blade holder is mainly composed of blade wheel, blade belt, blade sharpening device, blade belt inclination mechanism, blade holder body, blade box, and blade cover.

    The electric control device mainly includes the electric control operation box.

    23
    disc table
    22 (3)
    The base
    21 (6)
    The blade holder
    24
    The electric control device

    top-notch service

    Our customer service team is a dedicated, hard-working group specially selected for their enthusiasm and commitment to providing excellent customer service. They offer advice, answer any queries, and offer continuous support even after a purchase is completed.

    未标题-6 (2)

    Sabtech Technology Limited is rooted in the foundational technical expertise of machinery and backed by over 20 years of experience in mattress and PU foam manufacturing. Our aim is to produce economically efficient, high-performance, user-friendly, and low-maintenance polyurethane foam and mattress machinery.


    We have five production factories, access to resources from ten chemical material factories, and collaborations with over 100 furniture manufacturers in our supply chain. Our team includes five engineers specializing in polyurethane engineering, mechanical engineering, and circuit design, offering personalized one-on-one production technology training. An 8-person after-sales service team commits to responding within one hour. There are sample machines in the workshop available for on-site mechanical operation demonstrations at any time.


    To date, we have served 18 factories, assisting them in constructing, upgrading, and renovating their facilities. Providing professional insights for over 60 mattress and PU foam factories on factory planning and layout optimization, improving equipment efficiency, and reducing costs. Resolving mechanical operation issues, quality problems in foaming, and raw material waste issues for over 80 factories.


    We meticulously craft every detail of our machines, striving to make them serve workers better, reduce complexity, alleviate the burdens on frontline production workers, increase production efficiency, reduce production costs, and minimize maintenance issues.
