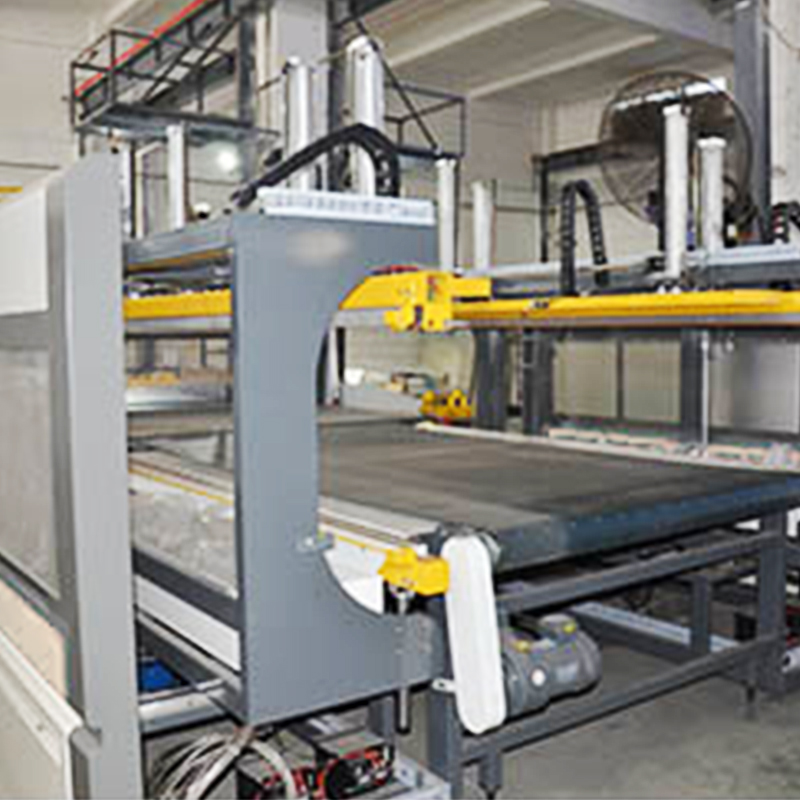

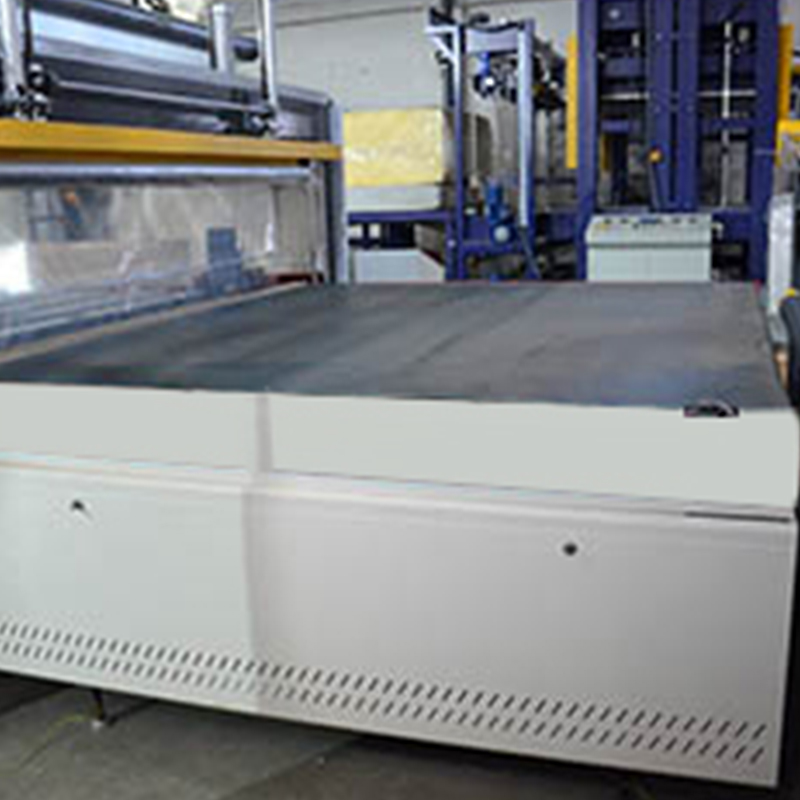

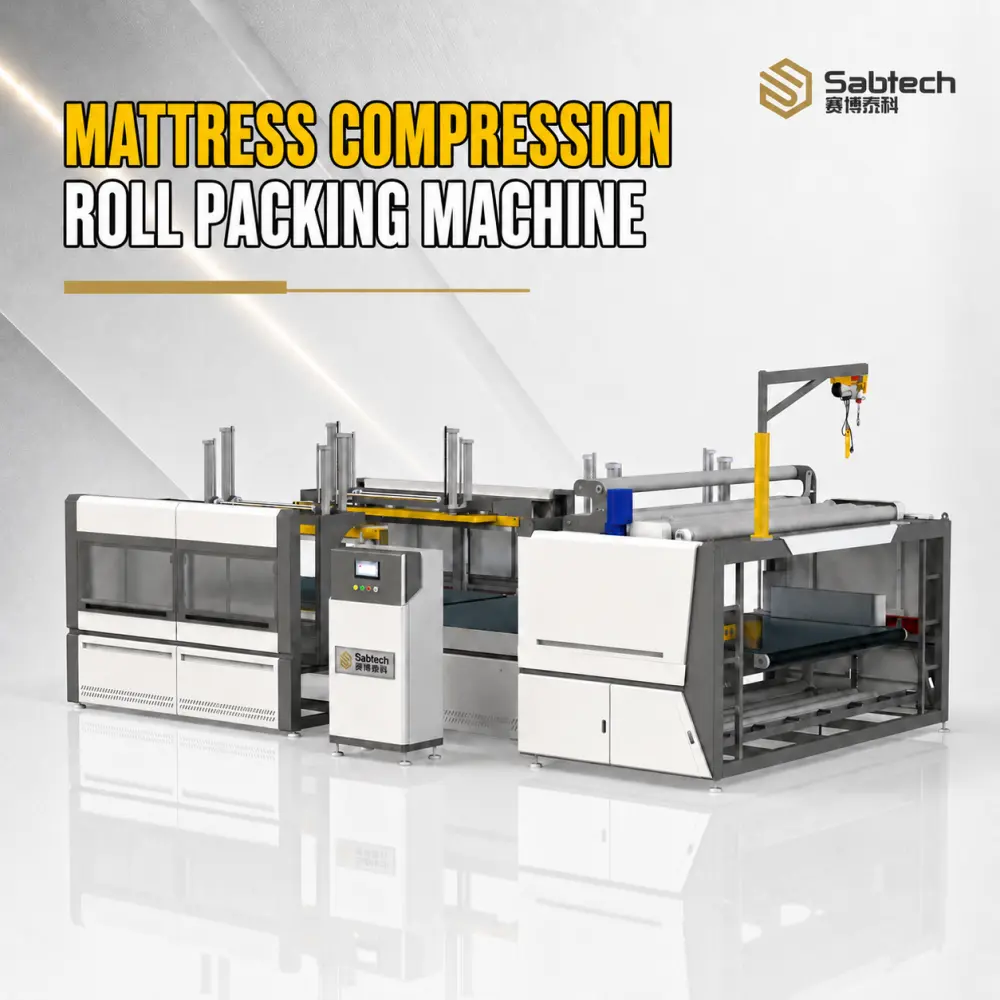

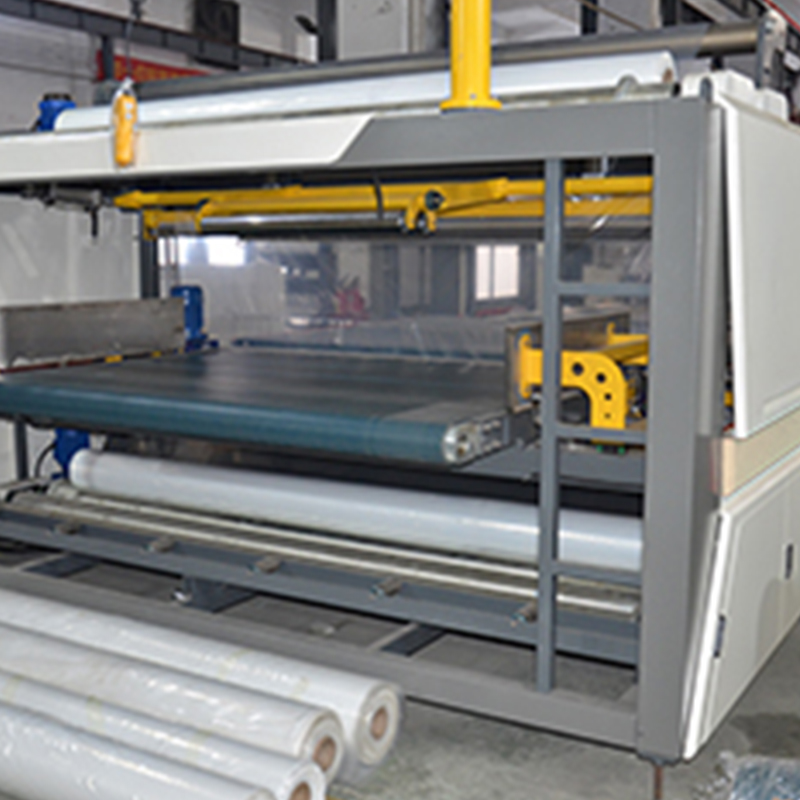

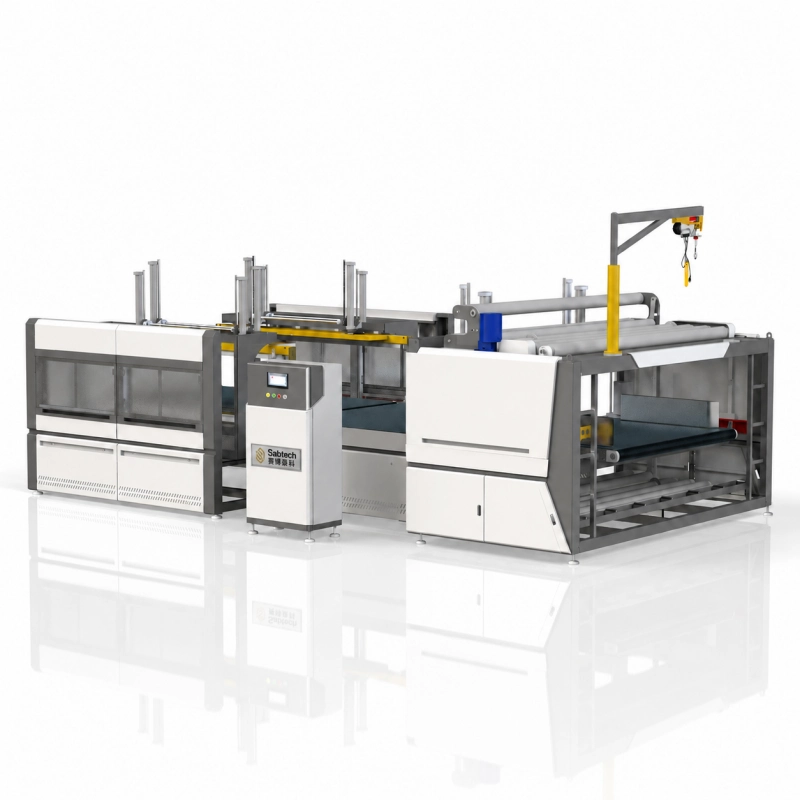

Mattress Compression Roll Packing Machine (SAB-MS01)
The SAB-MS01 mattress packing machine is designed for mattress factories that need to compress and roll foam mattresses after film packaging or sealing.
Unlike a mattress sealing machine, this machine focuses on the compression and roll-packing process, turning flat packed mattresses into compact rolls for easier handling, carton packing, storage, and transportation.
Key Features and Practical Packing Value
1. Integrated compression and roll packing
The SAB-MS01 combines mattress compression and roll packing in one machine, reducing the mattress volume and forming a compact roll package.
2. Compact roll package for shipment
After compression, the mattress is rolled into a cylindrical package, making it easier for carton packing, storage, handling, and container loading.
3. Designed for packed foam mattresses
The machine is suitable for foam mattresses after film packaging or sealing, completing the compression and rolling process before final shipment.
4. More consistent roll shape
Stable compression and rolling help produce a more uniform mattress roll, which is useful for stacking, carton packing, and warehouse management.
5. Suitable for mattress factory packing operations
The SAB-MS01 is suitable for mattress factories that need to reduce mattress packing volume and improve packing efficiency before delivery.
Related Parameters
| Voltage | AC380V/50Hz | Maximum size of pe/pvc film | ≤2950mm |
| Mattress width | 800-2100mm | Air pressure | 0.8MPa;0.78m3/hour |
| Mattress length | 1800-2100mm | Power | 18kw |
| Mattress height | 100-400mm | Overall dimension | 9030*3786*3020mm |
| Packaging efficiency | 45S/pcs | Weight | 3.5 Ton |
Product Detail
top-notch service
Our customer service team is a dedicated, hard-working group specially selected for their enthusiasm and commitment to providing excellent customer service. They offer advice, answer any queries, and offer continuous support even after a purchase is completed.
Need Help Confirming the Right Mattress Compression and Roll Packing Solution?
To check whether the SAB-MS01 fits your production needs, please send us:
- Mattress type and material, such as foam mattress, spring mattress, or hybrid mattress
- Mattress size range, including width, length, and thickness
- Expected roll size or carton size after packing
- Expected daily packing quantity or production speed
- Available factory space for machine installation
- Whether the machine will work independently or connect with existing bagging or sealing equipment
Based on this information, Sabtech can help check whether the SAB-MS01 Mattress Compression and Roll Packing Machine is suitable for your mattress compression and roll packing requirements, or whether another packing configuration is more suitable.
Contact Sabtech to confirm the suitable mattress compression and roll packing solution.
Production Process
We believe that it is foolish to sell any fixed type of machinery. Machinery should be upgraded according to different production scenarios to maximize efficiency.
